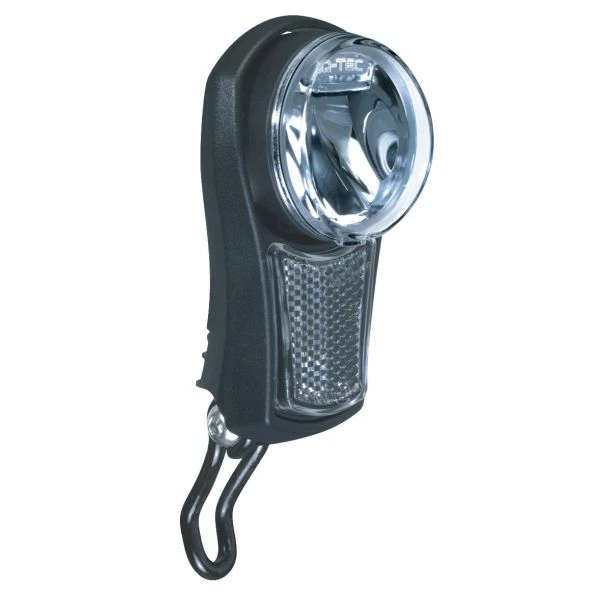

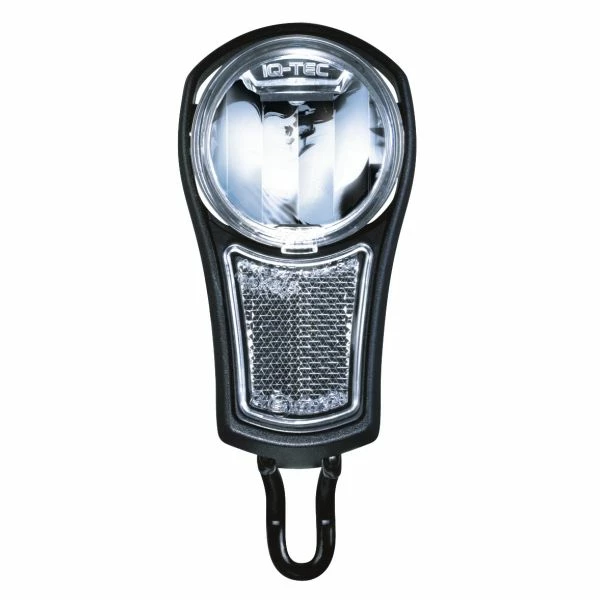

B&M Fly IQ LED Spotlight For Flyer C-Series / T-Series

B&M Fly IQ LED headlight with 40 lux light output for all models of the Flyer C-series and T-series from 2011 – especially for combination operation in battery and hub dynamo operation.

Connections – two inputs / two outputs

The Busch & Müller IQ Fly headlight in the Flyer version has two inputs and two outputs regulated to 6 volts.

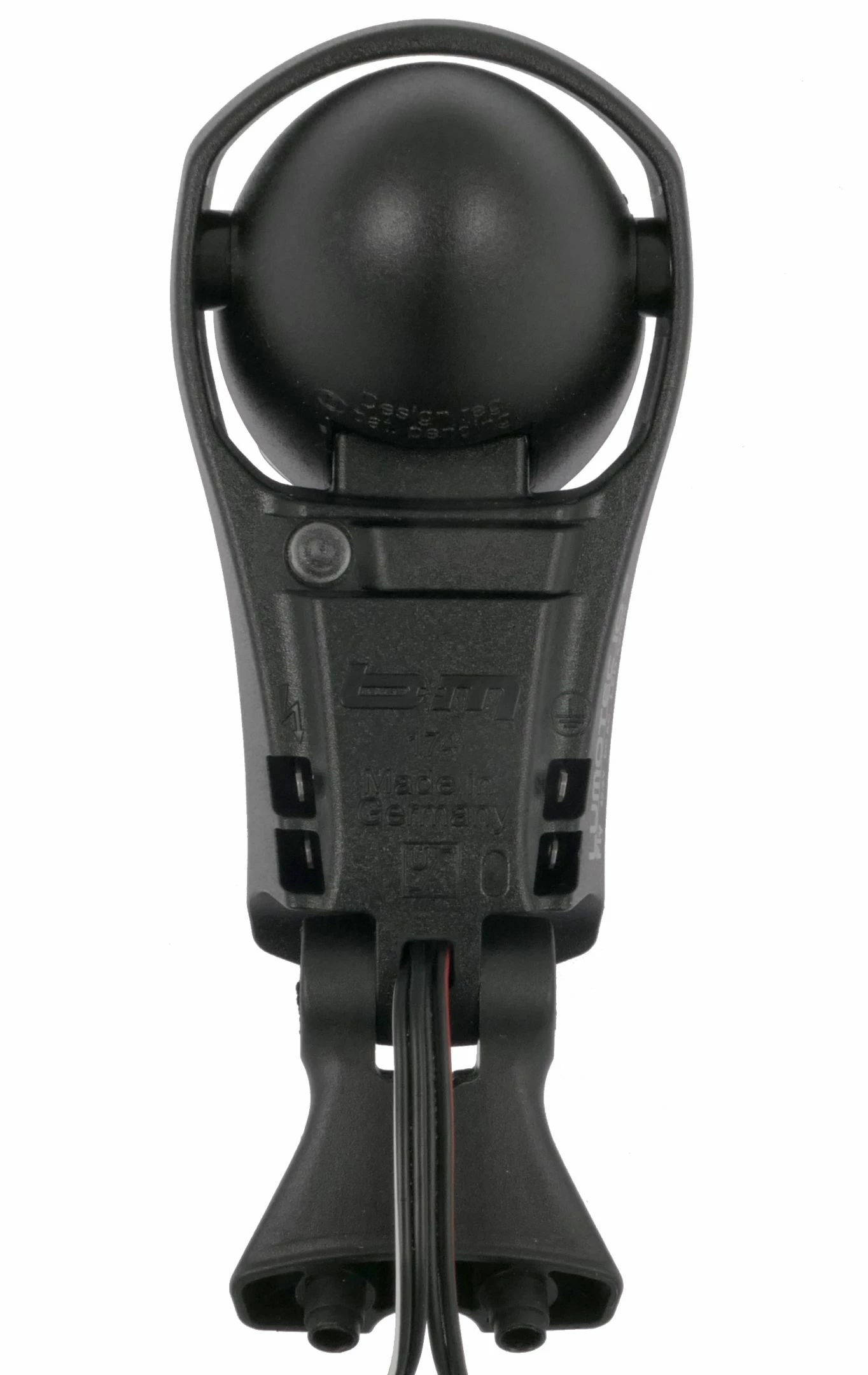

The two inputs are for the power supply. The input for the supply via the eBike battery voltage has a 5mm cable lug and is fused up to 42 volts. The input for the 6 volt hub dynamo has a long double cable and open ends. At the rear of the lamp are two outputs, each with 6 volts output voltage for the taillight connection. The standard 2.4 mm cable plugs of bicycle light cables can be connected to these.

Equipment

The core of the revolutionary lighting technology IQ-TEC is a specially developed special reflector with integrated cooling system, using a high-power LED as an indirect light source. This creates a light field that is more than 300% brighter than conventional headlights (10 lux). The road is illuminated with maximum uniformity and twice as wide as before.

The headlight is supplied with the Busch&Müller adapter 471A for SR-Suntour suspension forks for direct mounting on the fork. Alternatively, a standard lamp holder can also be mounted.
