The IQ Premium technology provides the best illumination of the road with 80 lux and a large area light field. The B&M IQ Cyo Premium is switched on and off via the switch on the display of the electric bike.
The Busch & Müller 1752Q6-04991 DC headlight offered here is compatible, for example, for electric bikes with:
- Bosch Active, Performance, Performance CX Line
- Shimano STePS
On both pedelec drive types, there is a regulated 6-volt current output for the headlight and a separate one for the tail light.
Required power input:
The Busch & Müller Cyo Premium 6-volt headlight 1752Q6-04991 consumes approximately 600mAh with a 6-volt voltage applied. This corresponds to an output of 3.6 watts.
The Bosch system provides between 500mAh (Classic until 2013) and 1500mAh (Active & Performance from 2014) at 6 volts, depending on the motor type and the latest software version. Thus, this headlight can only be used with Bosch engines from 2014.
Note for Yamaha:
- The 1752Q6-0491 headlight is not compatible for the Yamaha system because the required current of 600mAh at 6V is higher than the consumption of the 42-volt model with just 400mAh at 6V. The Yamaha motor can thus be damaged by the 1752Q6 and the warranty will be voided.
- For Yamaha, the following Busch & Müller headlight can be used without hesitation:
- Busch & Müller Premium 6 to 42-volt headlight 1752Q42/6N0491.
The following article may also be of interest to you:
- Busch & Müller 470LH lamp holder adapter for mounting on the Bosch Intuvia display holder.

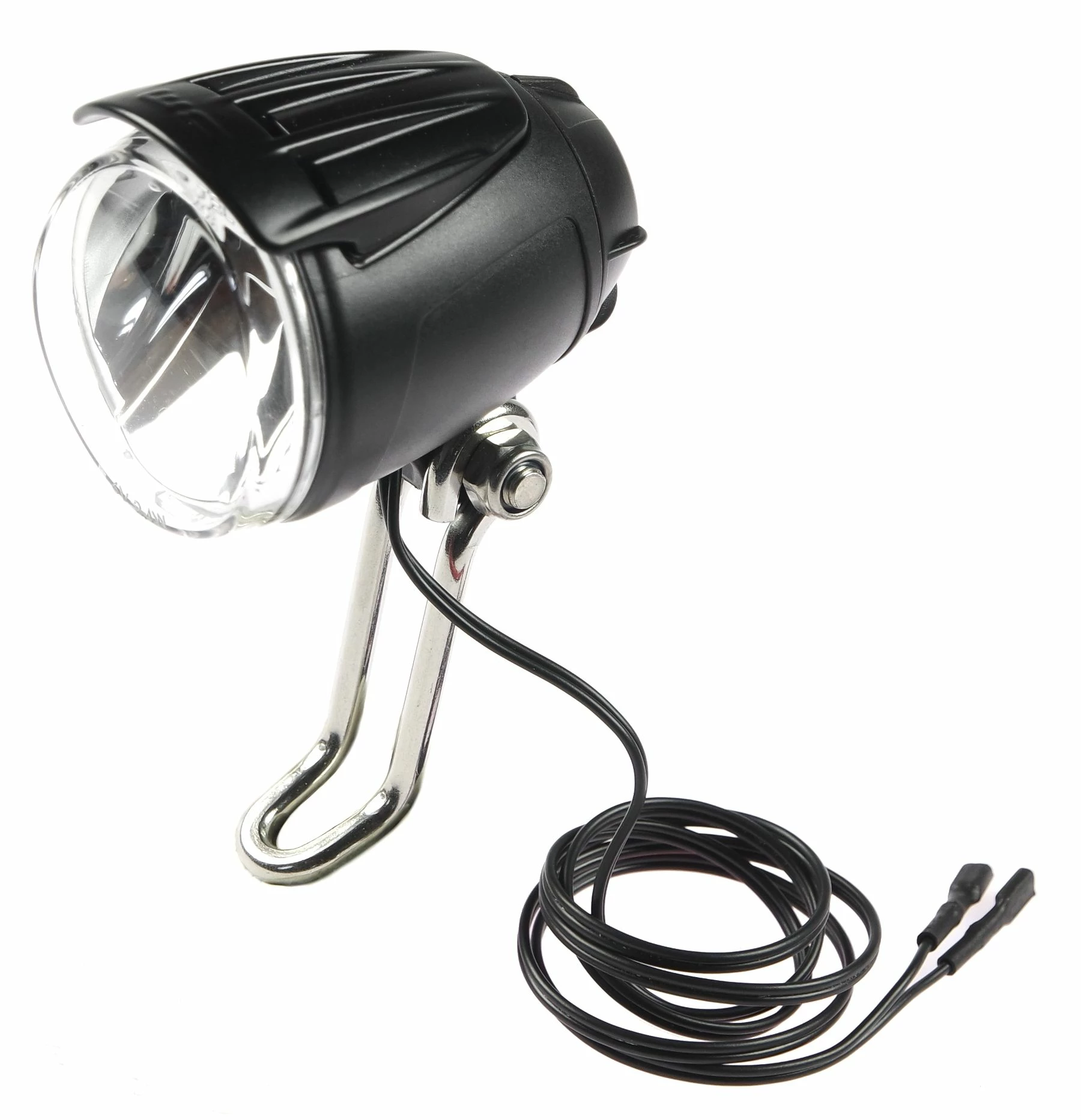

Technical details of the B&M IQ Cyo Premium electric bike LED headlight:
| Drive system: | Bosch drive, Continental drive, Giant drive, Impulse drive, Shimano drive, Yamaha drive |
|---|---|
| Item: | Busch & Müller IQ Cyo Premium Electric Bicycle Headlamp 80 Lux |
| Compatibility: | Bosch from 2014 (Active. Performance. CX-Line). Shimano Steps |
| Voltage input: | 6V (DC) direct current |
| Equipment: | IQ-Premium 80 Lux with large-area light field |
| Item number: | 1752Q6-04991 |
| Measurements: | Lamp head 52 mm diameter and 66 mm length |
| Colour: | black |
| Scope of delivery: | Lamp with holder, connection cable |
| Weight: | approx. 100 g |
| Yamaha System: | Yamaha PW, Yamaha PW-Sport, Yamaha PW-ST, Yamaha PW-TE, Yamaha PW-X, Yamaha PW-X2 |
| Supply voltage : | 6 Volts |
| Manufacturer: | Bush & Miller |
| Giant SyncDrive System: | Giant SyncDrive Pro, Giant SyncDrive Sport |
| Power source: | eBike battery |
| Impulse / Xion System: | Impulse 2.0, Impulse Evo, Impulse Evo Next, Impulse Evo RS |
| Taillight connector: | No |
| Shimano System: | Shimano E6000, Shimano E8000 |
| Approval: | Road traffic regulations |
