Shimano E-bike Chainring Bolts FC-M810-2

The Shimano eBike chainring bolt adapter set from 2-speed to 3-speed offered here is suitable for eBikes with Shimano mid-motor drive.

The Shimano eBike chainring bolt set is required if you want to add a chain guard ring to a Shimano eBike with a 2-speed chainring on the original Shimano Spider. In this combination, you can use two chainrings on a 2-speed spider and also a chain guard ring.

NOTE on mounting the Shimano chainring bolts:

• When mounting on some Haibike eBikes, it turned out that the combination is not compatible with the chain guard ring 48 teeth mounted on the outside.
• In this case, the front derailleur could not be adjusted correctly, so that grinding of the front derailleur on the chainring cannot be remedied.
• We are currently reviewing the use of an alternative manufacturer’s chain guard ring.
• This ring is smaller in overall outer diameter and should fix the problem with the front derailleur.

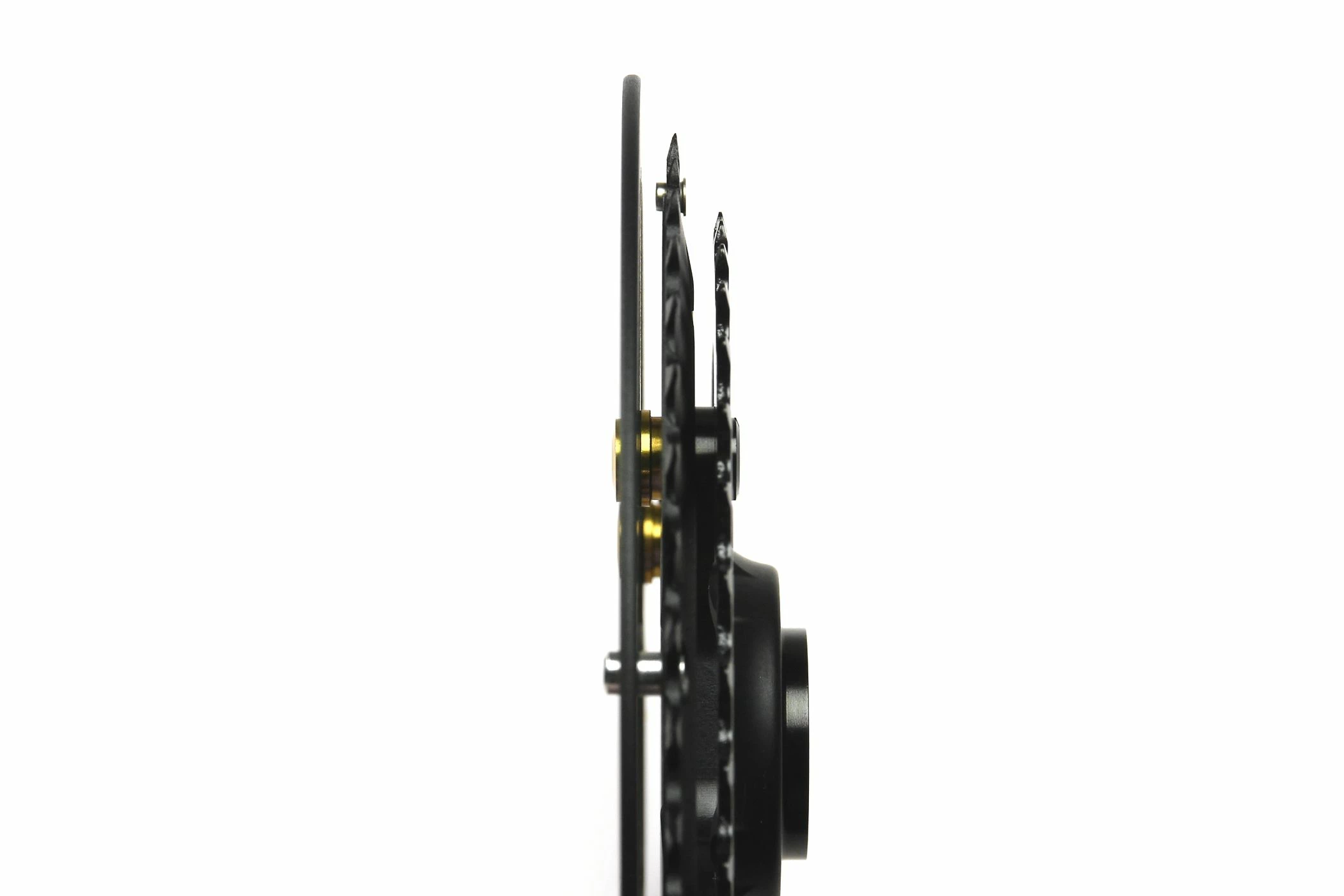

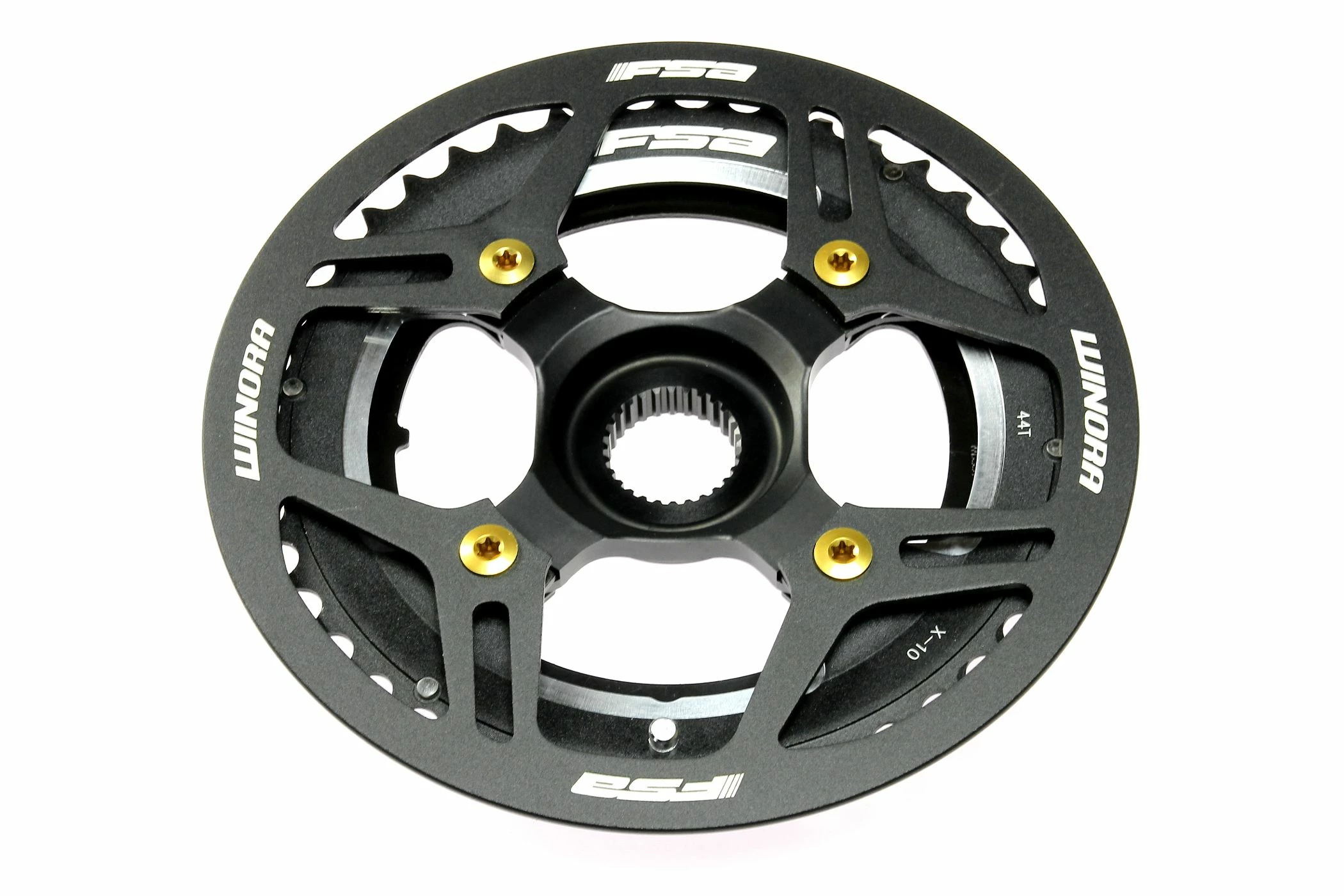

The chainring bolt adapter set for adding a 48-tooth chain guard ring to a 2-speed spider has, in addition to the 4 extra-long bolts and nuts, 4 spacers / spacers with which the necessary distance between e.g. the larger chainring (44 teeth) and the chain guard ring (48 teeth) is created.

If you are unsure about the accuracy of fit, please contact us and we will be happy to help you.

The technical details of the Shimano e-bike chainring bolt set, 3-speed adapter:
